MMCX Male Crimp Connector Right Angle 50 OHMs For RG316 Coaxial Cable
andnbsp;
andnbsp;
Introduction :
andnbsp;The series of MMCX RF connector is a kind of microminiaturized product smaller than MCX. It is small, light, joins convenient and reliable. Use for to system volume, serious to have small-scale communication, network equipment that require join the coaxial cable of the radio frequency extensively.
andnbsp;
SMT surface mount MMCX female pcb mountingandnbsp;
0~6GHz impedance, 50 ohmsandnbsp;
very MINI size, mate to cable crimping RG178 available
MMCX connector The MMCX series is also called MicroMateTM. It is one of Amphenoland#39;s smallest RF connector line and was developed in the 1990and#39;s. MMCX is a micro-miniature connector series with a lock-snap mechanism allowing for 360 degrees rotation enabling flexibility in PCB layouts. MMCX connectors conform to the European CECC 22000 specification.andnbsp;
The micromate family of products is a 6 GHz 50andnbsp;andOmega;andnbsp;interconnect system. A range of connectors are available including surface mount, edge card, and cable connectors.andnbsp;
andnbsp;
andnbsp;
andnbsp;
Key Specification:
BODY: andnbsp; Brass, gold or nickel plated
Center Contact:: Brass, beryllium-Copper
Insulation: Teflon
Gasket: Silicone
Crimp Ferrule: Annealed Copper or Brass
andnbsp;
Impedance: 50W nominal
Frequency Range: 0~6GHz
Rating Voltage: 500V
Dielectric Withstanding Voltage: 1500V
Contact Resistance: 3.0 mW MAX
Insulation Resistance: 5000 MW MIN.
andnbsp;
andnbsp;
andnbsp;
Electrical
andnbsp;
| 1andnbsp; | Characteristic Impedance | 50ohm |
| 2andnbsp;andnbsp;andnbsp;andnbsp;andnbsp; | Frequency Range | DC-6GHz |
| 3 | VSWR | 1.15 |
| 4 | Dielectric withstanding voltage | andge;2500RMS,50Hz,at sea level |
| 5 | Dielectric Resistance | andge;1GandOmega; |
| 6 | Contact Resistance | Outer Contactandle;2.5mandOmega; ;Center Contactandle;5.0mandOmega; |
andnbsp;
Mechanical
| 1 | Durabilityandnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp; | Mating cycles andge;500 |
andnbsp;
andnbsp;
Material and plating
| andnbsp; | Description | Material | Plating |
| 1andnbsp;andnbsp; | Body | Brass | Au |
| 2 | Insulator | PTFE | andndash; |
| 3 | Center conductor | Phosphor copperandnbsp; | Au |
andnbsp;
andnbsp;
Environmental
| 1 | Temperature Range | -40℃~+85℃ |
andnbsp;
andnbsp;
andnbsp;
Ordering information :
| TOP-MMCX-1 | MMCX straight male for RG174 |
| TOP-MMCX-2 | MMCX Right angle male for RG174 |
| TOP-MMCX-3 | MMCX Straight female for PCB |
| TOP-MMCX-4 | MMCX straight female for PCB |
| TOP-MMCX-5 | MMCX Right angle female for PCB |
andnbsp;
andnbsp;
Advantage:
andnbsp;
1.Small size, light and connection easyandnbsp;
2.Snap-on Couplingandnbsp;
3.Low RF Leakage
andnbsp;
andnbsp;
Application:
andnbsp;
Base stations, cable assemblies, PCMCIA Cards, broadband communications, RF test, Instrumentation, Telecommunications, GPS receivers, Components.
andnbsp;
andnbsp;
Drawing:
andnbsp;
andnbsp;
andnbsp;

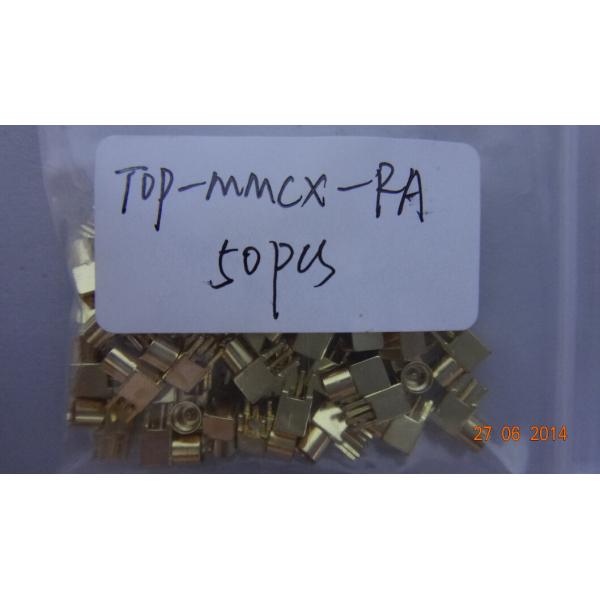

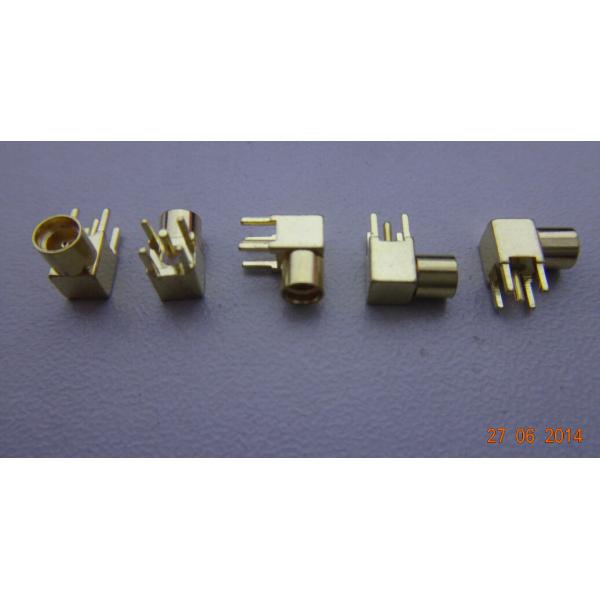

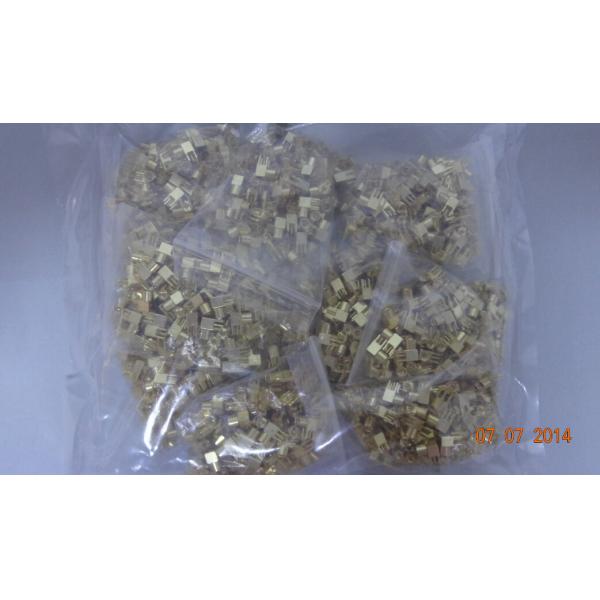

Production show:
andnbsp;
andnbsp;
andnbsp;
andnbsp;
andnbsp;
andnbsp;
andnbsp;
andnbsp;
andnbsp;
andnbsp;
andnbsp;
andnbsp;
andnbsp;
Our main RF coaxial connector :
All series connectors:
SMA,SMB,SMC,MCX,MMCX,N,FME,TNC,
BNC,TNC,FAKRA,GT5,U.FL, GSC,IPEX etc
